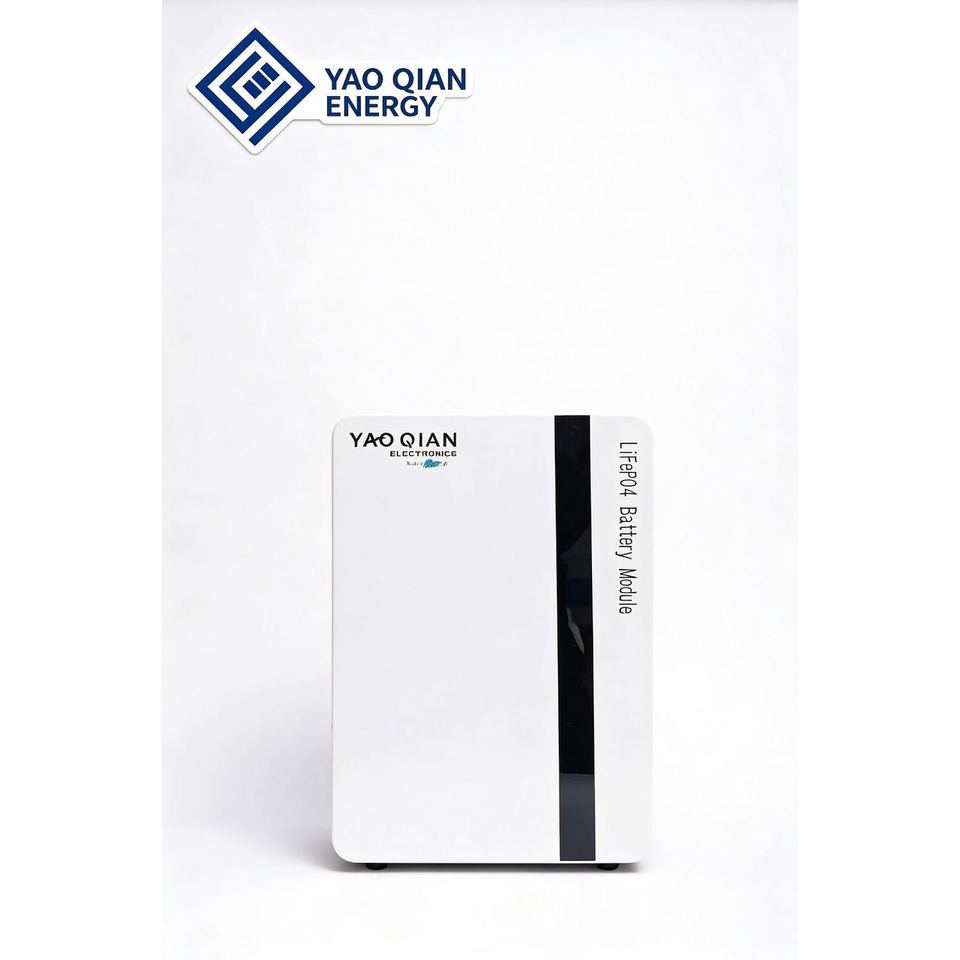

25.6V 100Ah Residential Wall Mounted Battery
Product Highlights
1. Long Cycle Life & High Energy Density
LiFePO4 battery with 25.6V 100Ah (2.56kWh) nominal capacity, ≥3000 cycle times, delivering high energy density and extended service life to reduce long-term cost.
2. Intelligent BMS Protection
Built-in smart BMS optimizes charge/discharge performance in real time, with over-charge, over-discharge, over-current and short-circuit protection for stable and reliable operation.
3.Compact & Easy Installation
Lightweight and compact design, compatible with multiple mounting methods for quick and flexible deployment in various scenarios.
4. High Safety Performance
LiFePO4 chemistry with intrinsic safety, combined with multi-level circuit protection, effectively avoids thermal runaway risks for residential and commercial energy storage.
5. Remote Monitoring & Control
Cloud-based remote monitoring function enables real-time data checking and parameter adjustment, greatly reducing on-site maintenance cost and realizing smart energy management.
Specification
12V/24V Series | |||
Parameter | YQ-90W-LV | YQ-105W-LV | YQ-120W-LV |
Battery Material | LiFePO4 | LiFePO4 | LiFePO4 |
Nominal Voltage(V) | 12.8 | 25.6 | 25.6 |
Nominal Capacity(Ah) | 90 | 105 | 120 |
Total Energy(kWh) | 1.15 | 2.68 | 3.07 |
Max. Charge Voltage (V) | 14.4 | 28.8 | 28.8 |
Discharge Cut-off Voltage (V) | 10 | 20 | 20 |
Max. Charge/Discharge Current (A) | 100 | 100 | 100 |
Scalability (Parallel) | 2S2P | Up to 15 units in parallel | Up to 15 units in parallel |
Communication Interface | RS485 / CAN / Bluetooth | RS485 / CAN / Bluetooth | RS485 / CAN / Bluetooth |
Cycle Life | >6,000 Cycles @ 25°C, 80% DOD | >6,000 Cycles @ 25°C, 80% DOD | >6,000 Cycles @ 25°C, 80% DOD |
Storage Temperature (°C) | -20 ~ 55 | -20 ~ 55 | -20 ~ 55 |
Operating Temperature (°C) | Charge: 0~55 / Discharge: -20~55 | Charge: 0~55 / Discharge: -20~55 | Charge: 0~55 / Discharge: -20~55 |
Protection Function | Over-charge, Over-discharge, Over-current, Temperature protection, etc. | Over-charge, Over-discharge, Over-current, Temperature protection, etc. | Over-charge, Over-discharge, Over-current, Temperature protection, etc. |
Dimensions (mm) | 420*380*100 | 420*380*143 | 450*380*170 |
Weight (kg) | 12±1 | 26.5±1 | 30±1 |
